Vertical inclined scraper conveyor
Capacity: 450-5687t/h
Chat online

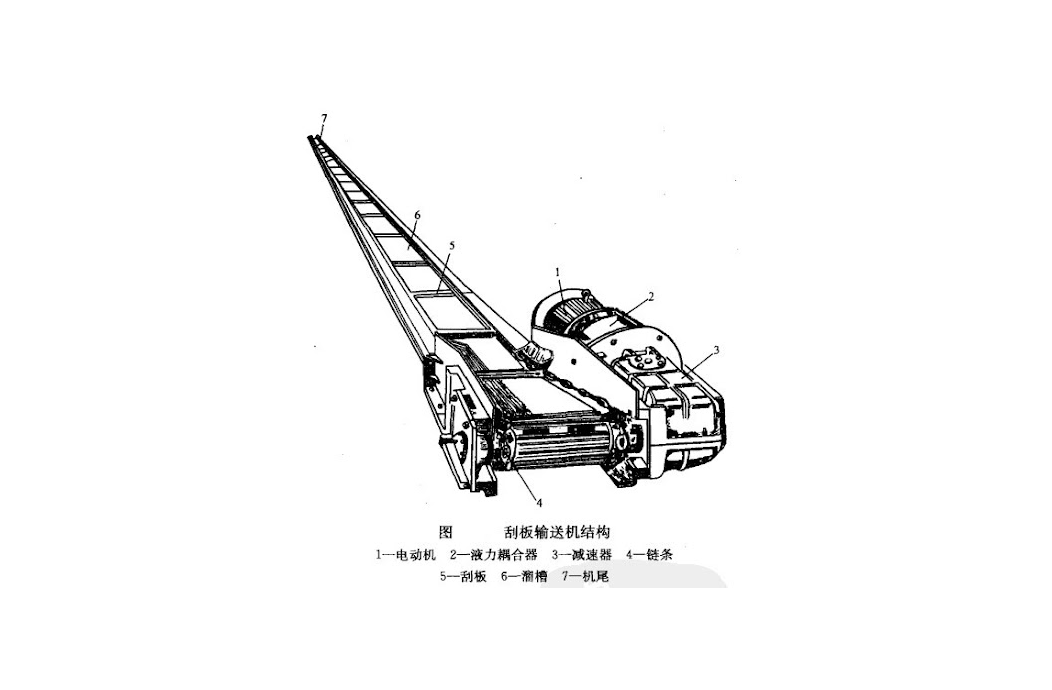

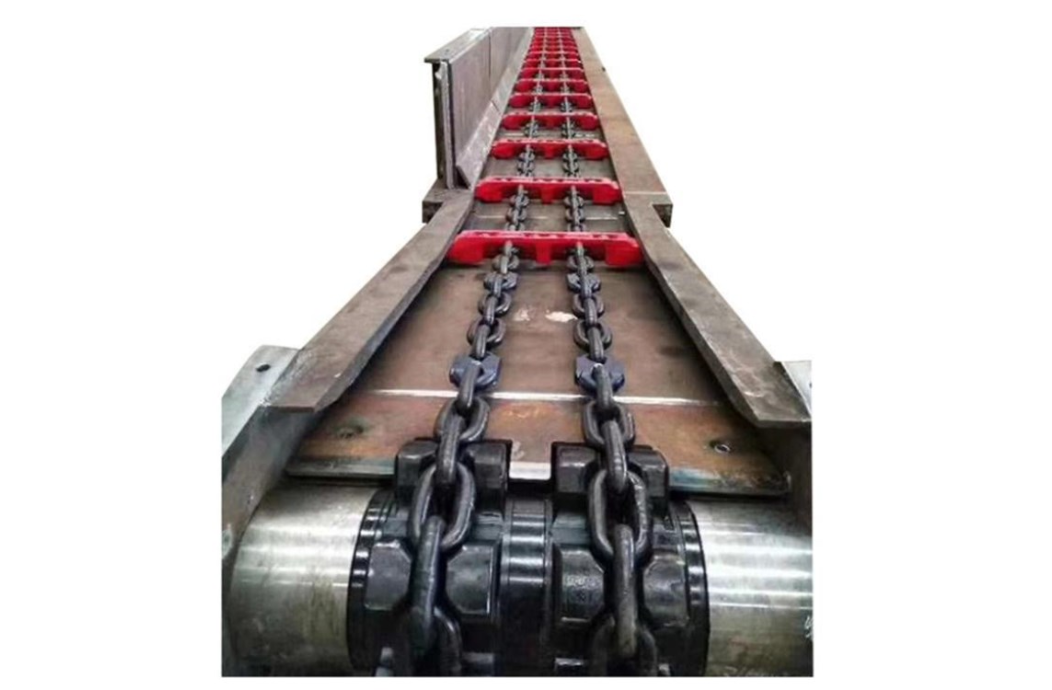

It operates by means of a scraper chain that moves within a sealed casing, efficiently lifting powdery, granular, or small-lump materials from a lower level to a higher point. It is ideal for space-limited layouts and high-lift material transport requirements
Vertical inclined scraper conveyors are widely used in:Cement & building materials,Chemical industry,Grain processing plants,Mining & metallurgy
Advantages
Product Advantages and Features
Better Quality Production
To give you peace of mind
Technical Data
| Model | Conveying Height (m) | Trough Width (mm) | Capacity (t/h) | Inclination Angle (°) | Motor Power (kW) | Typical Materials |
| VSC-200 | ≤15 | 200 | 10–25 | 60–90° | 4–7.5 | Cement, grain, fly ash |
| VSC-300 | ≤20 | 300 | 25–50 | 45–75° | 7.5–11 | Lime, fertilizer, slag |
| VSC-400 | ≤25 | 400 | 40–80 | 30–60° | 11–18.5 | Clinker, powder, pellets |
Note: Model-specific details available upon request. Please contact technical support.
