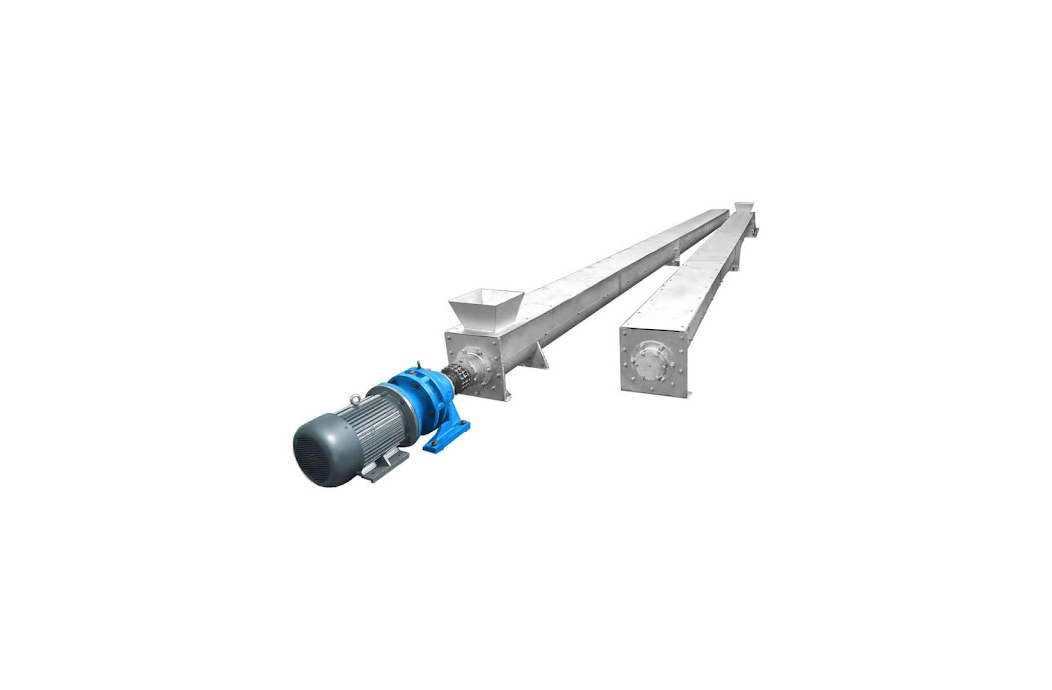

U-shaped screw conveyor
Capacity: 450-5687t/h
Chat online
It consists of a rotating helical screw blade housed inside a U-shaped trough, which moves material along the conveyor. Due to its simple structure, cost-effectiveness, and ease of maintenance, it is commonly found in cement, mining, chemical, and grain industries.
U-shaped screw conveyor is suitable for:Cement plants,Mining industry,Chemical processing,Agriculture and grain storage
Advantages
Product Advantages and Features
Better Quality Production
To give you peace of mind
Technical Data
| Model | Screw Diameter (mm) | Capacity (m³/h) | Length (m) | Inclination Angle (°) | Motor Power (kW) | Typical Use |
| LS160U | 160 | 5–12 | ≤12 | ≤15° | 3–5.5 | Cement powder, feed |
| LS250U | 250 | 5–35 | ≤20 | ≤20° | 5.5–11 | Fly ash, lime, coal powder |
| LS315U | 315 | 0–55 | ≤25 | ≤20° | 7.5–15 | Sludge, grain, slag dust |
Note: Model-specific details available upon request. Please contact technical support.
