NSE Bucket Elevator

Capacity: 450-5687t/h

Chat online

It is specifically designed for large capacity, high lifting height, and high operating speed, making it ideal for modern industrial processes requiring rapid and reliable vertical transport.

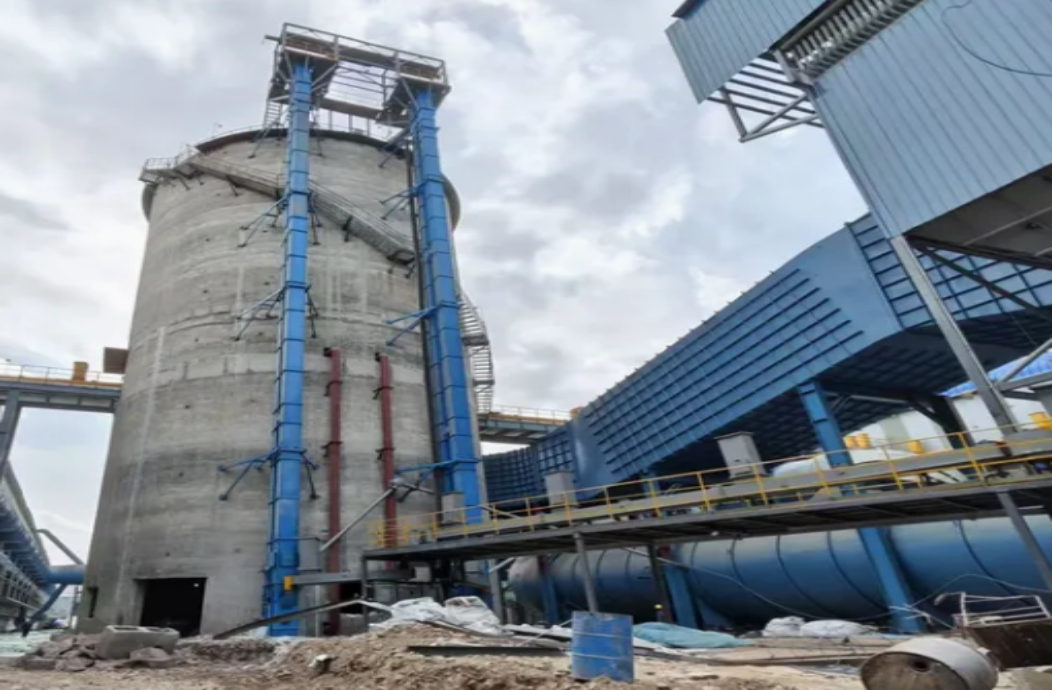

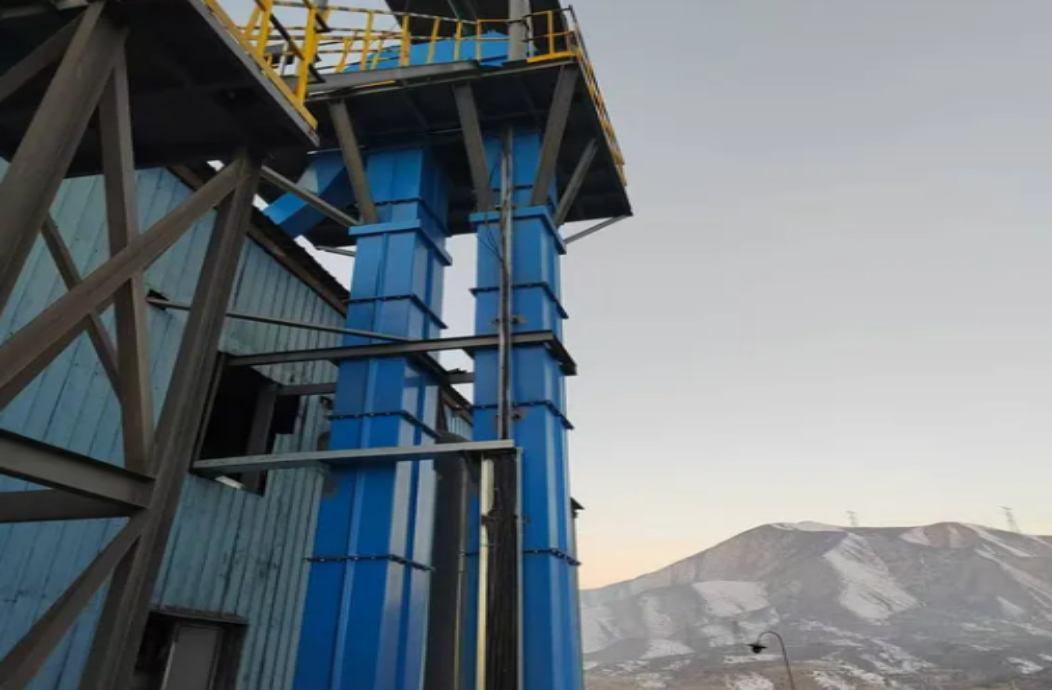

NSE Bucket Elevator widely used in Cement plants (clinker, raw meal, cement powder) Power plants (fly ash, desulfurized gypsum) Mining and minerals (ore powder, tailings) Lime, gypsum, and chemical powder conveying Grain terminals and bulk solids warehouses

Advantages

Product Advantages and Features

High conveying speed

Designed for fast and continuous vertical lifting
Large capacity output

Handles higher volumes than NE elevators with compact design
Robust plate chain drive

Ensures strong load-bearing performance and extended lifespan
Low maintenance

Minimal chain wear due to optimized speed and tensioning
Dust

tight enclosure - Prevents material loss and environmental contamination
Customizable configuration

Supports multiple feed and discharge points, left/right drives
High lifting height

Capable of conveying materials up to 80 meters or more

Better Quality Production

To give you peace of mind

Technical Data

Model	Lifting Capacity (t/h)	Bucket Width (mm)	Max Lifting Height (m)	Bucket Speed (m/s)	Drive System
NSE100	100	400	≤ 50	0.75 – 1.6	Motor + Reducer + Backstop
NSE200	200	500	≤ 60	0.75 – 1.6	Motor + Hydraulic Coupler
NSE300	300	650	≤ 70	0.75 – 1.6	Motor + Coupling + Variable Frequency Drive
NSE500	500	800+	≤ 80	0.75 – 1.6	Custom Drive System

Note: Model-specific details available upon request. Please contact technical support.
