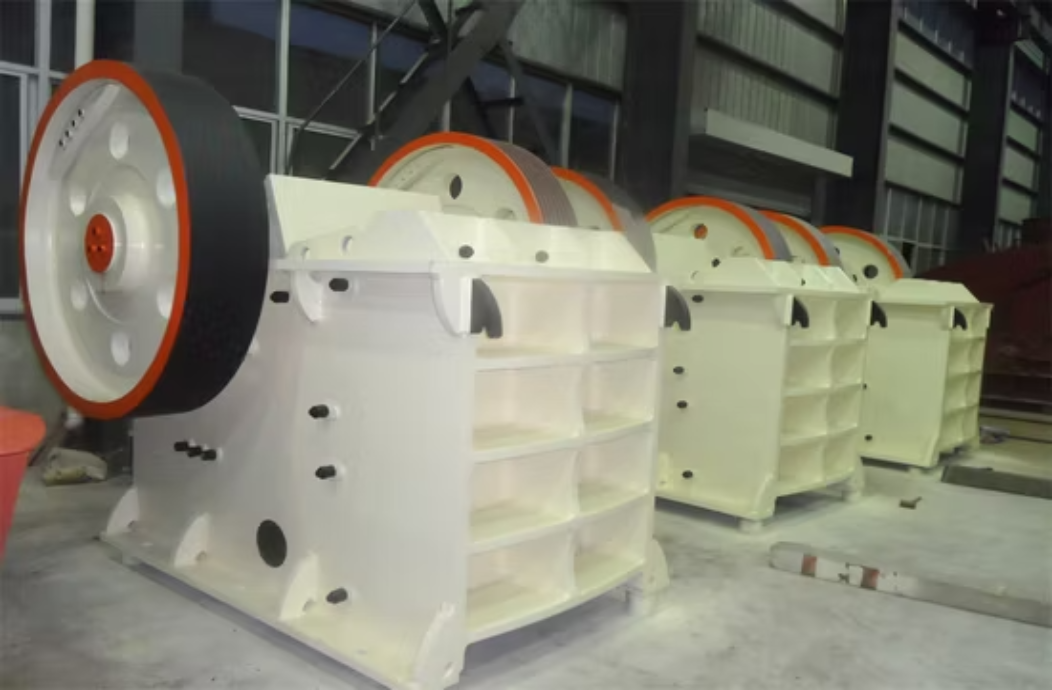

Jaw crusher
Capacity: 450-5687t/h
The material is crushed through the "movable-immovable" clamping space between the fixed jaw plate and the movable jaw plate, and is gradually discharged from the bottom of the equipment.It is one of the most common primary crushing equipment in the crushing production line. It has a simple structure and reliable performance. It is the basic crushing equipment in mining, building materials, chemical industry and other industries.
Mines and quarries, construction and road construction, industrial production lines
Advantages
Product Advantages and Features
Better Quality Production
To give you peace of mind
Technical Data
| Model | Feed Opening (mm) | Max Feeding Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
| PE-400×600 | 400×600 | 340 | 40–100 | 15–60 | 30 | 6.5 |
| PE-500×750 | 500×750 | 425 | 50–125 | 40–110 | 55 | 11 |
| PE-600×900 | 600×900 | 500 | 65–160 | 70–150 | 75 | 17 |
| PE-750×1060 | 750×1060 | 630 | 80–180 | 110–320 | 110 | 28 |
| PE-900×1200 | 900×1200 | 750 | 95–225 | 220–450 | 132 | 50 |
| PE-1200×1500 | 1200×1500 | 1020 | 150–300 | 400–800 | 200 | 95 |
Note: Model-specific details available upon request. Please contact technical support.
