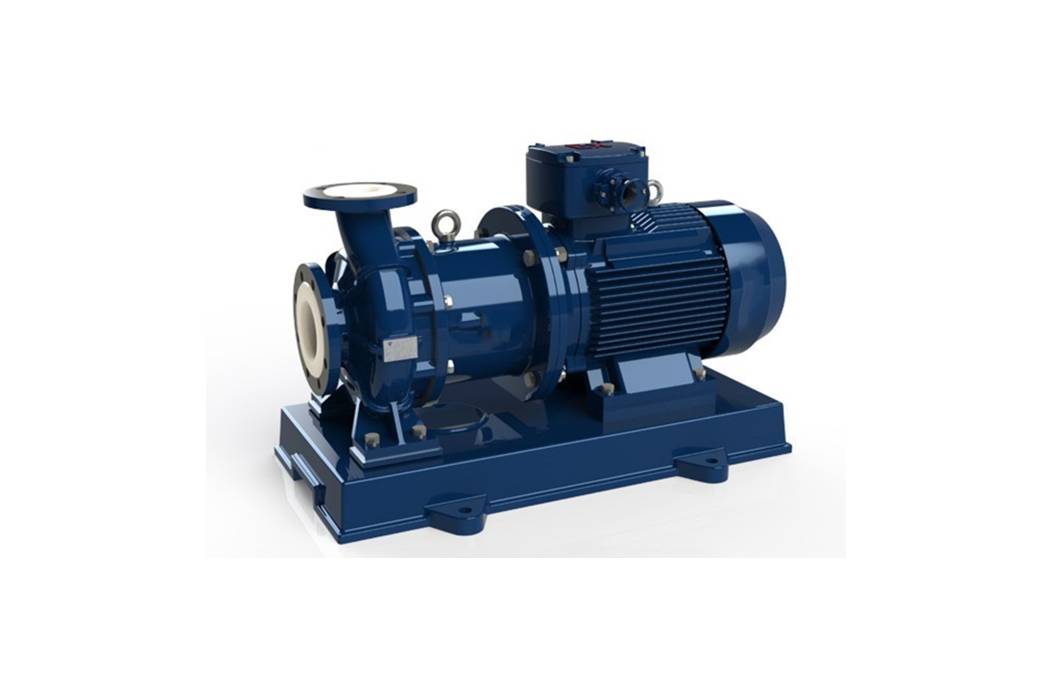

CQB series Fluorine Plastic Lined Magnetic Pump

Capacity: 450-5687t/h

Chat online

The pump body cavity is fully or partially lined with fluoroplastics (such as PTFE, FEP, PFA, etc.), the outer casing is usually carbon steel or stainless steel, and the drive adopts magnetic coupling (external magnet and internal magnet), thereby achieving zero leakage and shaft seal-free equipment for transporting corrosive liquids.

Chemical industry, electroplating industry, pharmaceutical industry, environmental protection industry, oil and gas industry, food and beverage industry

Advantages

Product Advantages and Features

Zero leakage/environmentally friendly and safe

The shaft seal-less design effectively avoids shaft seal leakage and is suitable for toxic, volatile or valuable media.
Strong corrosion resistance

Fluorine plastic lining has extremely high corrosion resistance to most acids, alkalis, salts and organic solvents.
Low maintenance cost

no packing and mechanical seal, little operation and maintenance required; common faults reduced.
Good sealing and safe use

suitable for highly toxic, flammable and explosive or strictly environmentally friendly occasions.
Compact structure and smooth operation

magnetic coupling drive reduces axial force, has small vibration and low noise.
Explosion

proof and explosion-proof are easier to achieve-no exposed shaft seal reduces the risk of leakage and ignition sources (explosion-proof motor and compliance installation are required).

Better Quality Production

To give you peace of mind

Technical Data

Model	Flow (m³/h)	Pump head (m)	η (%)	Inlet (mm)	Outlet (mm)	NPSH (m)	Power (kW)	Weight (kg)
CQB16-12-50F	0.5	2	10	φ16	φ12	9.0	0.025	5
CQB15-15-65F	0.8	3.5	17	φ15	φ15	6.0	0.18	7
CQB20-15-75F	1.6	7	21	φ20	φ15	6.0	0.18	8
CQB25-20-100F	1.0	10	26	φ25	φ20	6.0	0.37	12

Note: Model-specific details available upon request. Please contact technical support.
