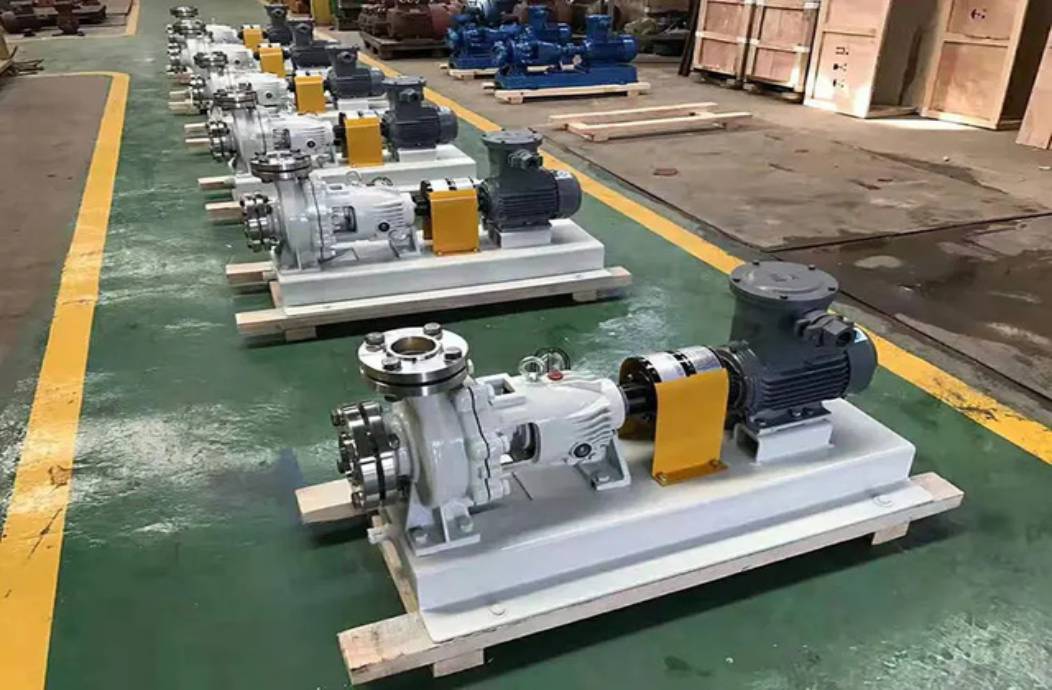

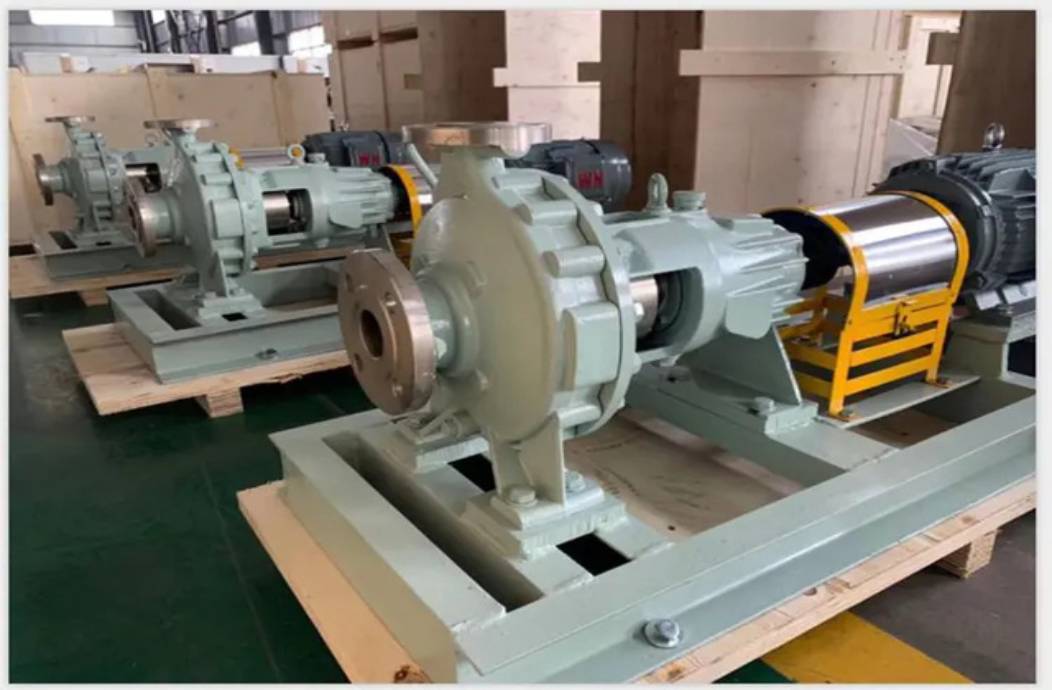

CZ/ZA/ZE petrochemical process horizontal end suction centrifugal pumps

Capacity: 450-5687t/h

Chat online

It adopts advanced design concepts and high-quality materials to transport various liquids efficiently and reliably, including clean liquids, chemicals, oils, corrosive liquids, etc.

Oil and gas industry, chemical engineering and fine chemicals, metallurgical industry, pharmaceutical industry

Advantages

Product Advantages and Features

High Efficiency Design

The impeller and pump casing of the CZZAZE series pump are carefully designed to ensure energy efficiency when operating under high flow and high head conditions.
Excellent Corrosion Resistance

The pump body and key components are made from corrosion-resistant materials, making it suitable for transporting corrosive liquids and effectively extending the service life of the equipment.
Smooth and Reliable Operation

Thanks to the use of high-quality bearings and sealing structures, the pump operates smoothly with minimal vibration and low noise.
Easy Maintenance

The horizontal single-suction design simplifies the pump structure, making maintenance easy and allowing for convenient replacement of wear parts such as the impeller and shaft seal.
Strong Adaptability

This pump is suitable for a wide range of liquids, especially excelling in the transportation of high-temperature, high-pressure, and corrosive liquids.
Optional Explosion

Proof Design-The pump can be equipped with an explosion-proof motor, making it suitable for transporting liquids in flammable and explosive environments.
Convenient Installation

The horizontal structure design saves installation space and facilitates connection with existing pipelines and equipment.

Better Quality Production

To give you peace of mind

Technical Data


Model	Flow (m³/h)	Pump head (m)	η (%)	Inlet (mm)	Outlet (mm)	NPSH (m)	Power (kW)	Weight (kg)
CZZAZE-01	10	50	75	φ50	φ50	6.0	7.5	180
CZZAZE-02	25	70	78	φ65	φ65	6.5	11.2	200
CZZAZE-03	50	80	80	φ100	φ80	7.0	15.5	250

Note: Model-specific details available upon request. Please contact technical support.
