Pipe Belt Conveyor
Capacity: 450-5687t/h

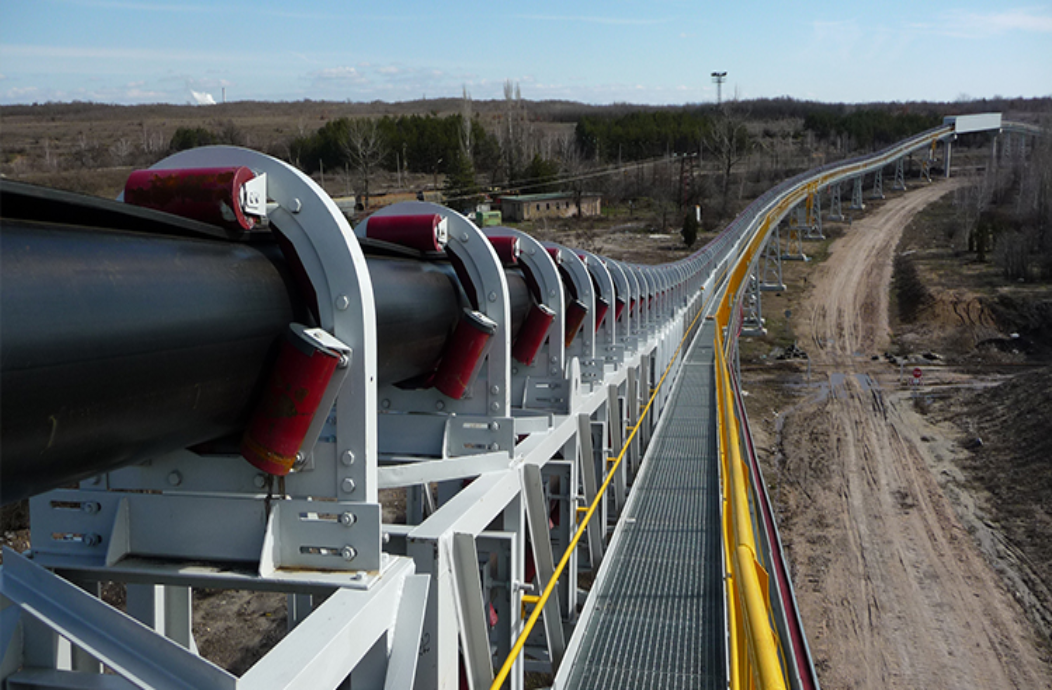

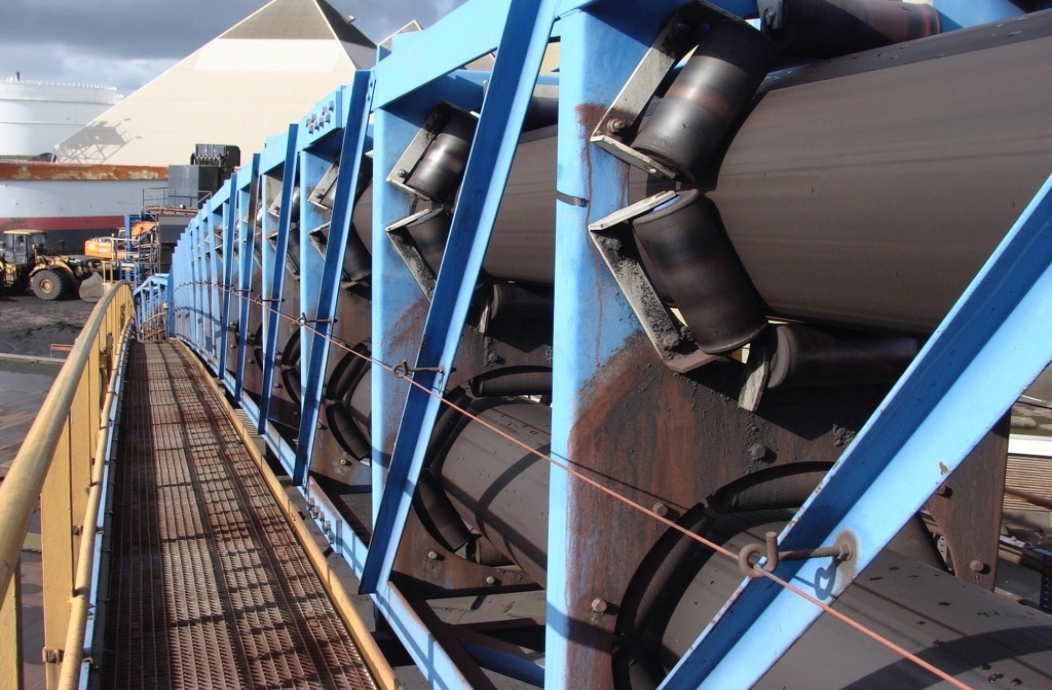

The Pipe Belt Conveyor is an advanced bulk material conveying system in which the conveyor belt forms a closed pipe shape during transportation. This enclosed design effectively prevents material spillage, minimizes environmental contamination, and allows for complex routing such as horizontal curves and steep inclines. It is especially suitable for environmentally sensitive areas and long-distance, multi-directional conveying systems.
Pipe Belt Conveyor widely used in Cement, steel, and power plants (dust-free material transport) Mining and mineral processing (especially for high-value or fine materials) Ports and terminals (ship loading/unloading with environmental control) Chemical and fertilizer industries
Advantages
Product Advantages and Features
Better Quality Production
To give you peace of mind
Technical Data
| Model | Belt Width (mm) | Pipe Diameter (mm) | Capacity (t/h) | Conveying Distance (m) | Belt Speed (m/s) | Inclination Angle (°) | Drive Type |
| PBC-800 | 800 | 200 | 300 – 600 | ≤ 200 | 1.5 – 2.5 | ≤ 20° | Motor + Reducer / Hydraulic Coupler |
| PBC-1000 | 1000 | 250 | 600 – 1000 | ≤ 300 | 1.5 – 3.15 | ≤ 22° | Motor + Coupling + Soft Starter |
| PBC-1200 (Custom) | 1200 | 300 | 800 – 1600 | ≤ 500 | 2.0 – 3.5 | ≤ 25° | Custom Drive System |
Note: Model-specific details available upon request. Please contact technical support.
