Large Inclination Angle Sidewall Belt Conveyor
Capacity: 450-5687t/h

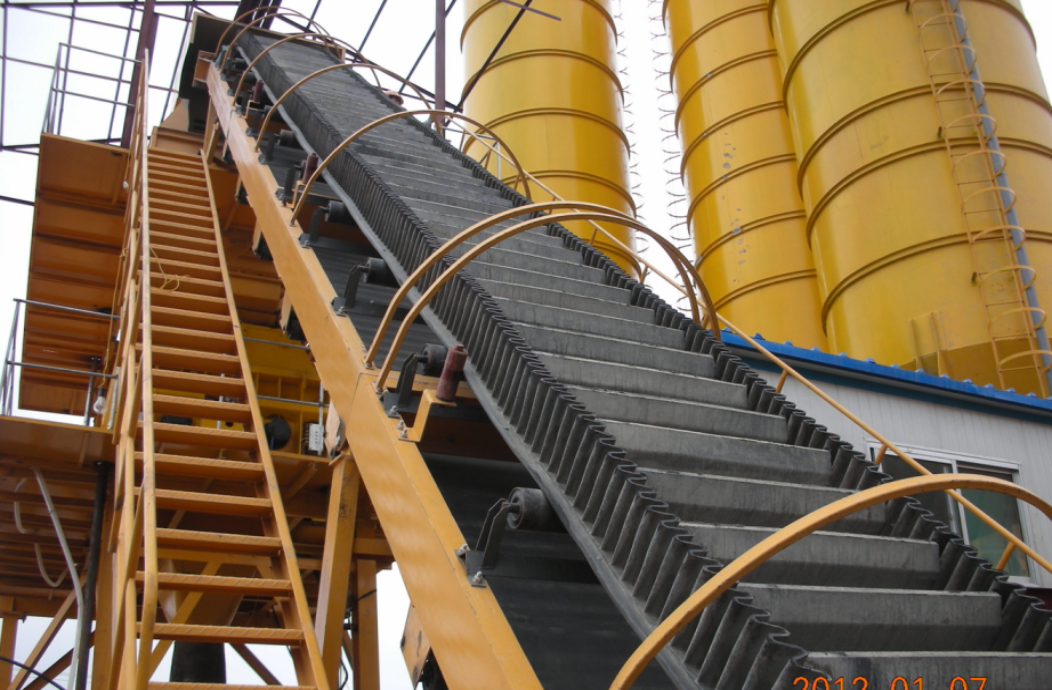

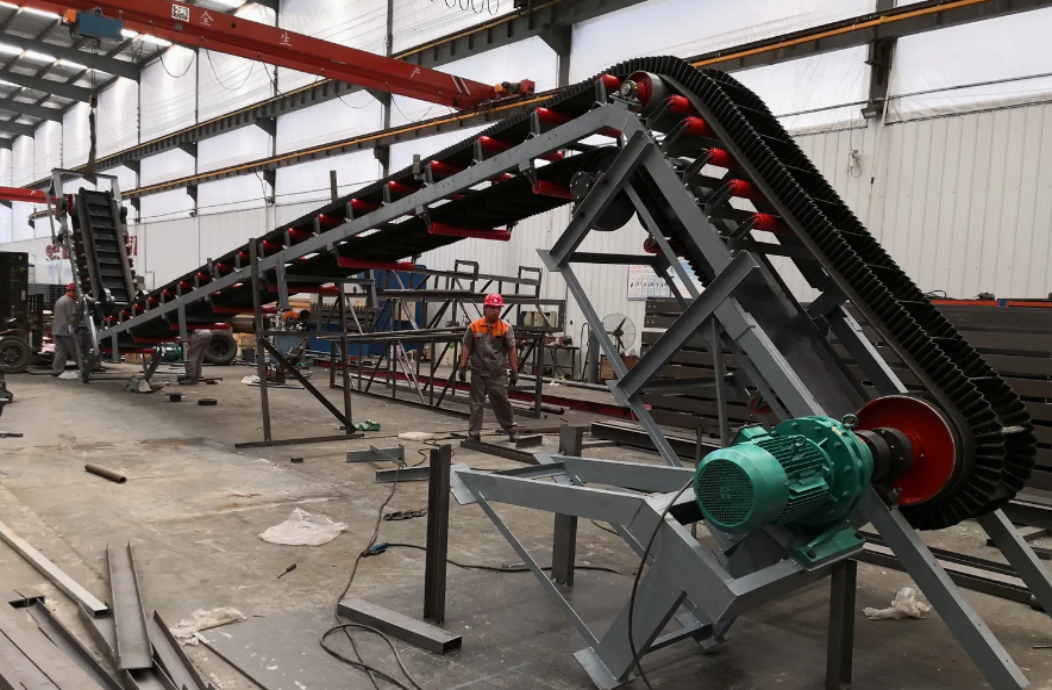

It uses a specially designed conveyor belt with corrugated sidewalls and cross cleats, allowing bulk materials to be conveyed at angles of up to 90° without the risk of spillage or rollback.
Large Inclination Angle Sidewall Belt Conveyor widely used in Mining and tunneling projects with vertical or steep incline requirements Cement, metallurgy, and steel industries Ports, power plants, and fertilizer production Underground storage or pit-to-surface material handling Waste treatment and recycling plants
Advantages
Product Advantages and Features
Better Quality Production
To give you peace of mind
Technical Data
| Model | Belt Width (mm) | Capacity (t/h) | Max Inclination Angle (°) | Conveying Height (m) | Belt Speed (m/s) | Cleat Height (mm) | Drive Type |
| SWBC-500 | 500 | 50 – 150 | ≤ 75° | ≤ 20 | 0.8 – 2.5 | 60 / 80 | Motor + Reducer / Soft Starter |
| SWBC-800 | 800 | 100 – 400 | ≤ 80° | ≤ 30 | 0.8 – 2.5 | 80 / 100 | Motor + Hydraulic Coupler |
| SWBC-1000 | 1000 | 200 – 600 | ≤ 90° | ≤ 40 | 1.0 – 3.15 | 100 / 120 | Motor + Coupling + Variable Frequency Drive |
Note: Model-specific details available upon request. Please contact technical support.
