Powered roller conveyor

MP Series Cone Crusher MP Series Cone Crusher MP Series Cone Crusher
MP Series Cone Crusher MP Series Cone Crusher MP Series Cone Crusher

Capacity: 450-5687t/h

Chat online

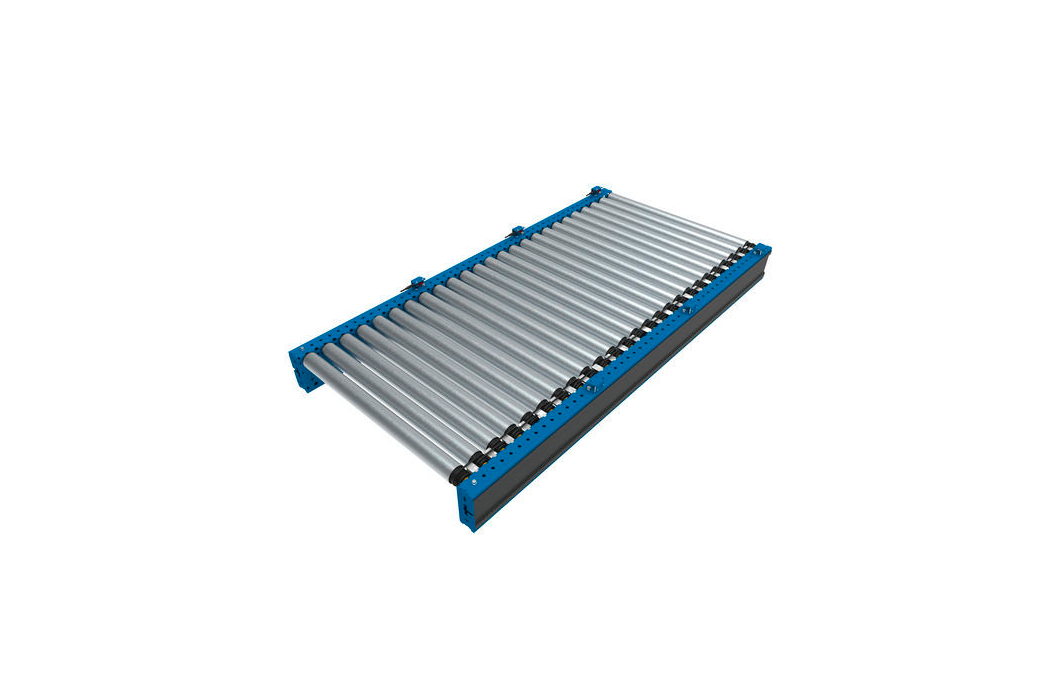

It has the characteristics of simple structure, smooth operation, and easy modular combination. It is widely used for automated transportation of boxes, pallets, bags, and parts. It can be arranged horizontally, turning, or lifting. It is commonly used in assembly lines, sorting lines, and assembly systems.

Powered Roller Conveyor is widely used in: warehousing and logistics centers, cement/mining/machinery industries

Advantages

Product Advantages and Features

  • Automatic drive transmission

    driven by electric roller or chain to achieve efficient and continuous conveying

  • Flexible modular splicing

    can freely combine straight lines, turns, lifting and other structures to adapt to different layouts

  • Supports beat control and partition drive

    partition induction control can be set to achieve dynamic start and stop and energy-saving operation

  • Suitable for a variety of materials

    suitable for various carriers such as boxes, pallets, barrels, bags, etc., with load capacity from a few kilograms to tons

  • Safe and durable, easy maintenance

    the parts are highly versatile, the roller is wear-resistant and rust-proof, and the maintenance cost is low

  • Can be linked to system automation

    can be connected to PLC, sensors, sorting systems, lifting equipment, etc. to build automated production/conveyor lines

Better Quality Production

To give you peace of mind

Technical Data

Model Roller diameter (mm) Roller spacing (mm) Effective width (mm) Drive mode Loading capacity (kg/m) Conveying speed (m/min)
PRC-60/Light Ø60 75 500–800 Electric roller single-stage drive ≤100 10–25
PRC-76/Standard Ø76 100 600–1000 Sprocket + chain linkage transmission ≤300 8–20
PRC-89/Heavy Ø89 120 800–1200 Multi-chain + intermediate driver ≤800 5–15

Note: Model-specific details available upon request. Please contact technical support.

Enterprise Services

  • Factory original price
  • Global after-sales service
  • Free installation and maintenance guidance
  • 24-hour online customer service
  • 28

    28 years of development

  • 160

    Sold to more than 160 countries

  • 500

    More than 500 long-term partners

  • 50

    Covering an area of 500,000 square meters

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

Gravity roller conveyor

Gravity roller conveyor

Gravity Roller Conveyor (Gravity Roller Conveyor) is a simple and efficient equipment that uses the material's own weight or artificial thrust to slide on the surface of the roller to achieve powerless transportation. Read More

Powered roller conveyor

Powered roller conveyor

Powered Roller Conveyor (Powered Roller Conveyor) is an efficient conveying equipment that drives the roller through a motor or sprocket to automatically transport materials on the surface of the roller. Read More

Accumulation type roller conveyor

Accumulation type roller conveyor

Accumulation Roller Conveyor is a roller conveying equipment that supports temporary storage (accumulation), intermittent conveying and buffer control of materials. Read More

Heavy Duty Chain Drive Roller Conveyor

Heavy Duty Chain Drive Roller Conveyor

The heavy-duty chain drive roller conveyor is a high-strength conveying equipment specially designed for conveying heavy materials and bulky goods. Read More

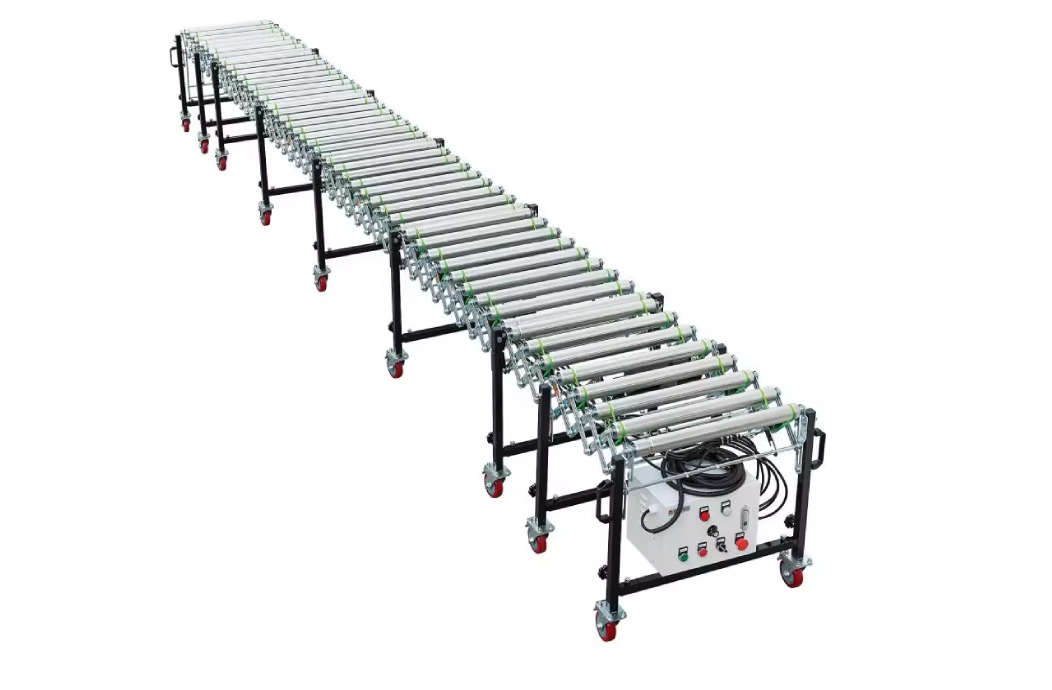

Telescopic roller conveyor
